Circular Shapes

At work I sometimes use Excel for drawing simple diagrams of machinery and parts. Every try drawing something like a cog? It's hard to get the right angles and spacing of the teeth so I tried using some VBA for a solution. Here's what I came up with.

Sub EquidistantRotatation()
    On Error Resume Next
    Dim i As Integer, rObject As Object, rAngle As Double
    Dim cLeft As Double, cTop As Double, cRadius As Double
    If ActiveSheet.DrawingObjects.Count Mod 2 = 1 Then
        rAngle = 360 / ActiveSheet.DrawingObjects.Count
    Else
        rAngle = 180 / ActiveSheet.DrawingObjects.Count
    End If
    ActiveSheet.DrawingObjects.Select
    Selection.ShapeRange.Rotation = 0
    For Each rObject In Selection
        With rObject
            .Left = Selection(1).Left
            .Top = Selection(1).Top
            .ShapeRange.Rotation = rAngle * i
        End With
        i = i + 1
    Next
    cRadius = Selection(1).Height / 2.5 ' adjust to preference
    cLeft = Selection(1).Left + (Selection(1).Width / 2) - cRadius
    cTop = Selection(1).Top + (Selection(1).Height / 2) - cRadius
    ActiveSheet.Shapes.AddShape(msoShapeOval, cLeft, cTop, cRadius * 2, cRadius * 2).Select
        ActiveSheet.DrawingObjects.Select
        Selection.ShapeRange.Group.Select
        Selection.Name = "rShapes"
End Sub

Quick and simple code, here's how to use it.

Copy a shape by pushing Ctrl + C, then keep pushing Ctrl + V until you have the number of shapes you need. Keep in mind that you only need half the number of shapes if working with even numbers like 4, 6, etc as they will overlap. (No need to halve in the case of odd numbers)

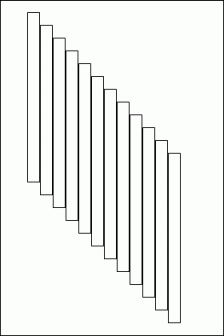

For example, Here's a picture of 12 shapes that I will use to make a cog with 24 teeth.



After running the code I get this. (Run the code from "Run Macro" on the Visual Basic toolbar for a nice animation effect!) You can adjust the circle diameter with changing the value for "cRadius". (Bigger numbers = smaller circles)



Do some experimentation to make stuff such as flowers,



Add some color,



Or change the lines,



Note: The code groups the shapes together. To select a single shape from a set of grouped shapes, click it twice but don't double click or the Format Autoshapes dialog box will appear (This may be what you want if formatting all grouped shapes). Wait a second or two between clicks instead. There's no need to Ungroup and Regroup.
